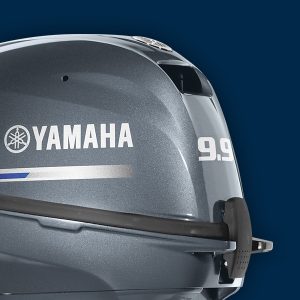

PORTABLE 9.9HP
Our 212-cc 9.9-hp portable is an impressive little outboard with a new, shorter tiller handle for increased comfort.
- Only 87 pounds
- Available in 15” and 20” and 25” (T9.9 only) shaft lengths
- Solid 6-amp alternator
- Microcomputer Ignition
- Thermostatic Cooling Control
- Crossfire Valve Fuel Charging
- Engine Type 2 cyl
- Displacement 212cc
- Bore x Stroke 56 x 43mm (2.20 x 1.70 in.)
- Prop Shaft Horsepower 9.9hp @ 5500rpm
- Full Throttle RPM Range 5000 ~ 6000
- Alternator Output at W.O.T. 6
- Compression Ratio 9.4:1
- Fuel Induction System Carb
- Weight* 39 kg (87 lbs) – 42 kg (93 lbs)
- Recommended Fuel Octane 87
- Recommended Engine Oil Yamalube® 4M (See owner’s manual)
- Recommended Fuel Filtration Yamaha 10-Micron Fuel/Water Separating Filter (external)
- C.A.R.B. Rating 3-Star
- Exhaust Through Propeller
- Intake 4
- Ignition CDI Microcomputer
- Spark Plug BR6HS-10
- Alternator Output 6
- Starting System Electric & Manual
- Lubrication Wet Sump
- Engine Oil Capacity 0.8L
- Recommended Cooling Thermostatic Control
- Ethanol Blend Limit 10% Maximum
- Gear Ratio 2.08:1
- Gear Shift Forward, Neutral, Reverse
- Shaft Length 15″ – 20″
- Degree of Tilt 71°
- Degree of Trim -4° through +16°
- Dry Weight 15″ shaft / 39 kg (87 lbs), 20″ shaft / 42 kg (93 lbs)
- Mounting Centers N/A
- Steering
- Steering Angle (maximum) 43° from center, either direction
- Warranty Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial
