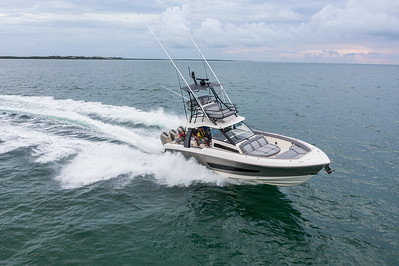

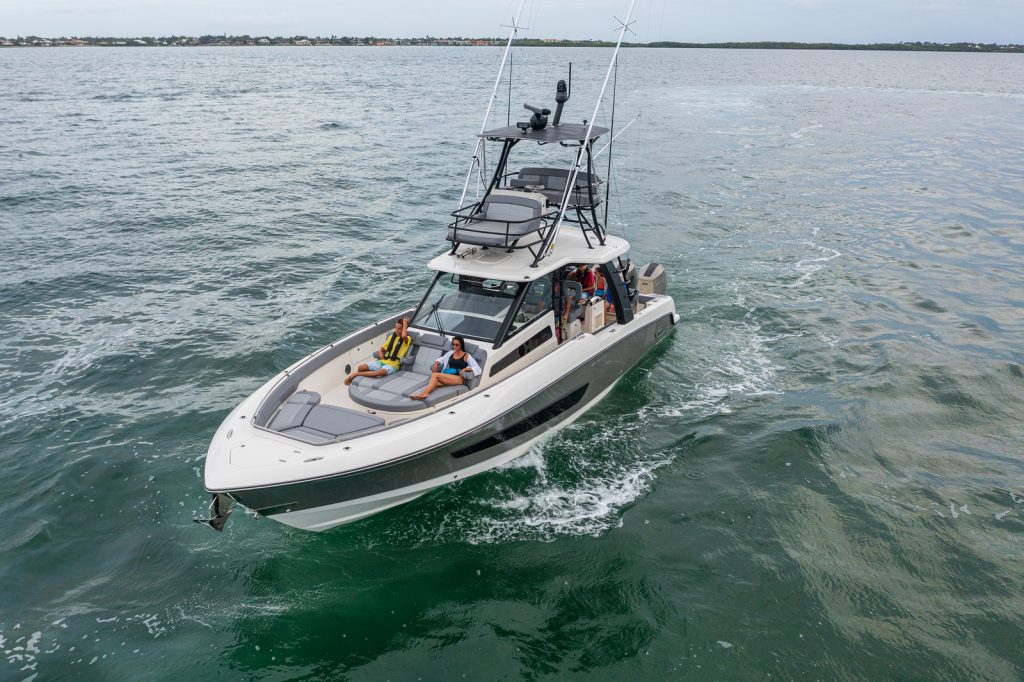

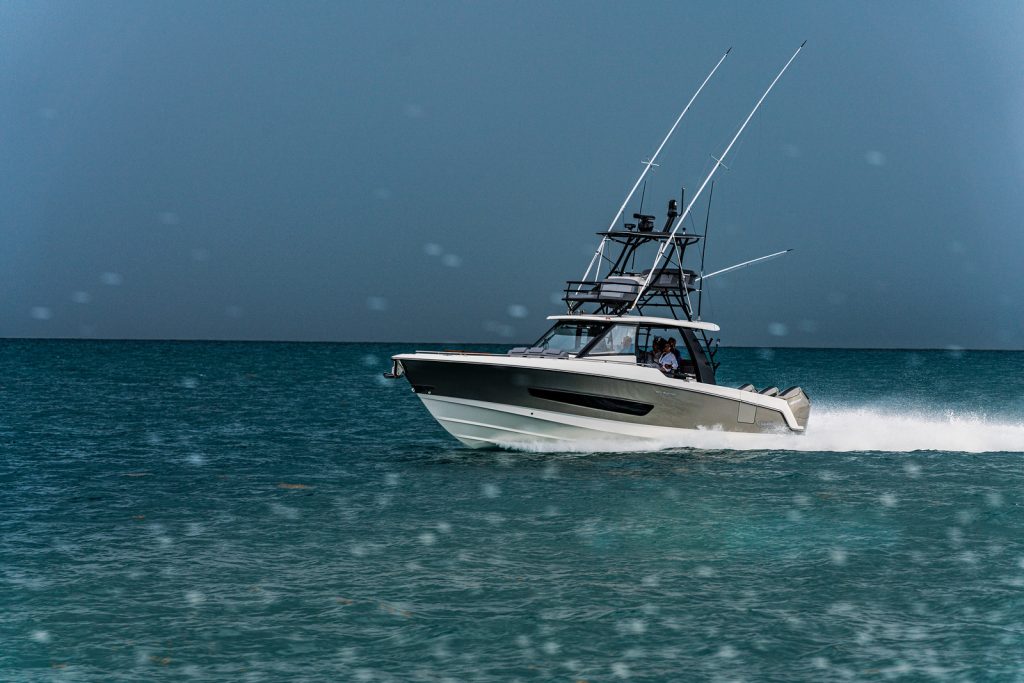

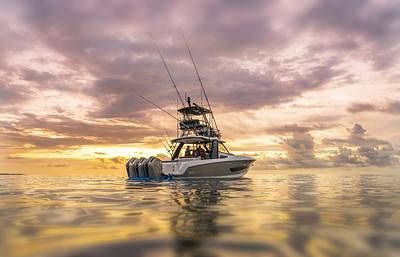

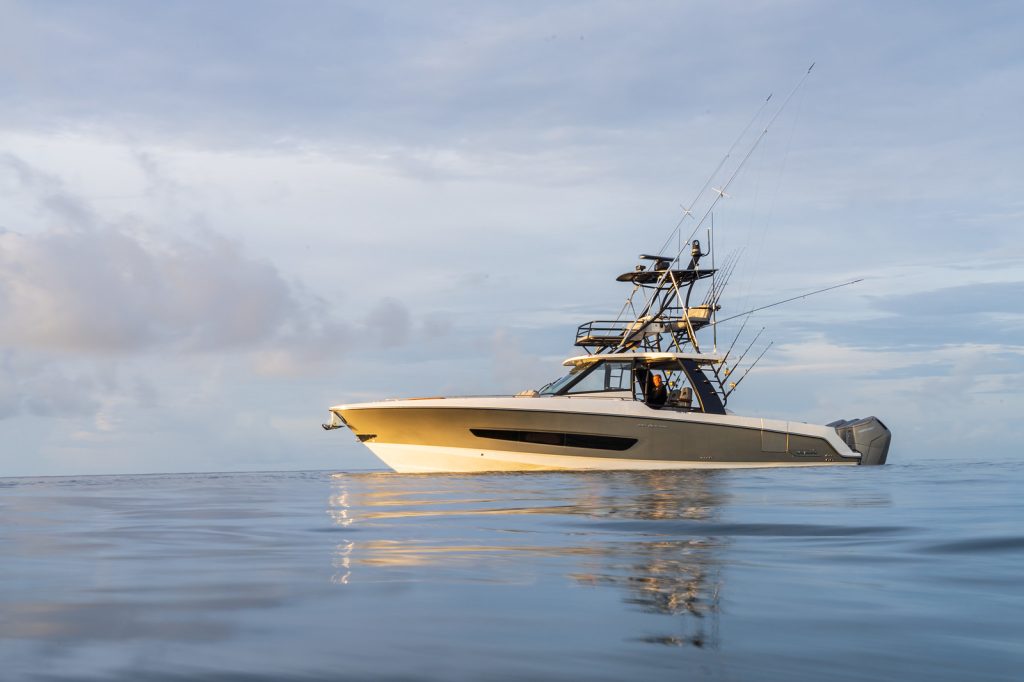

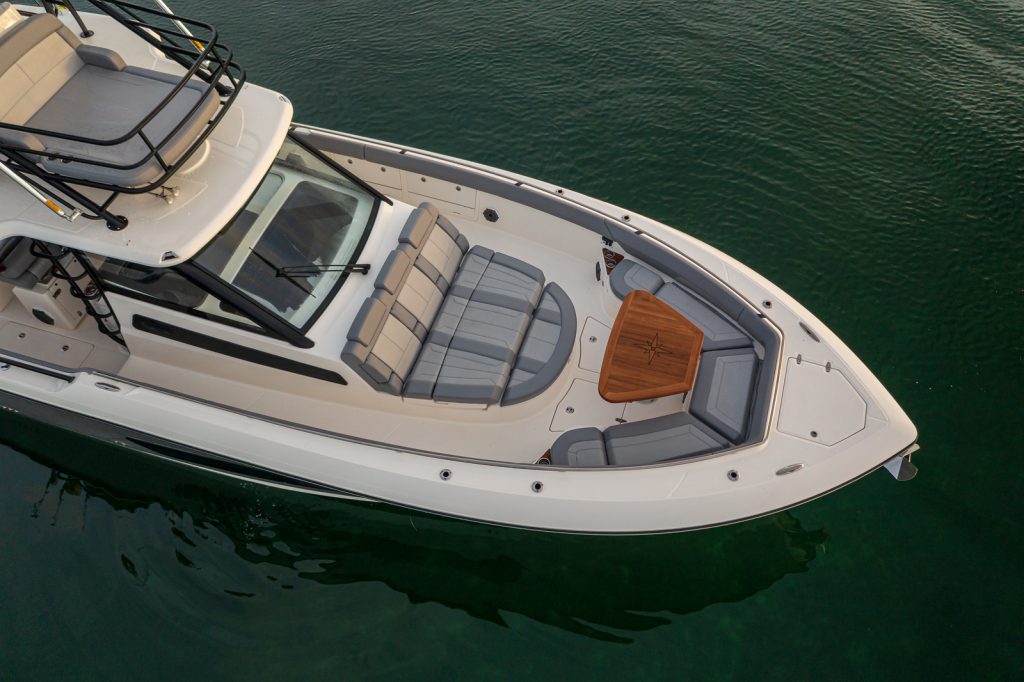

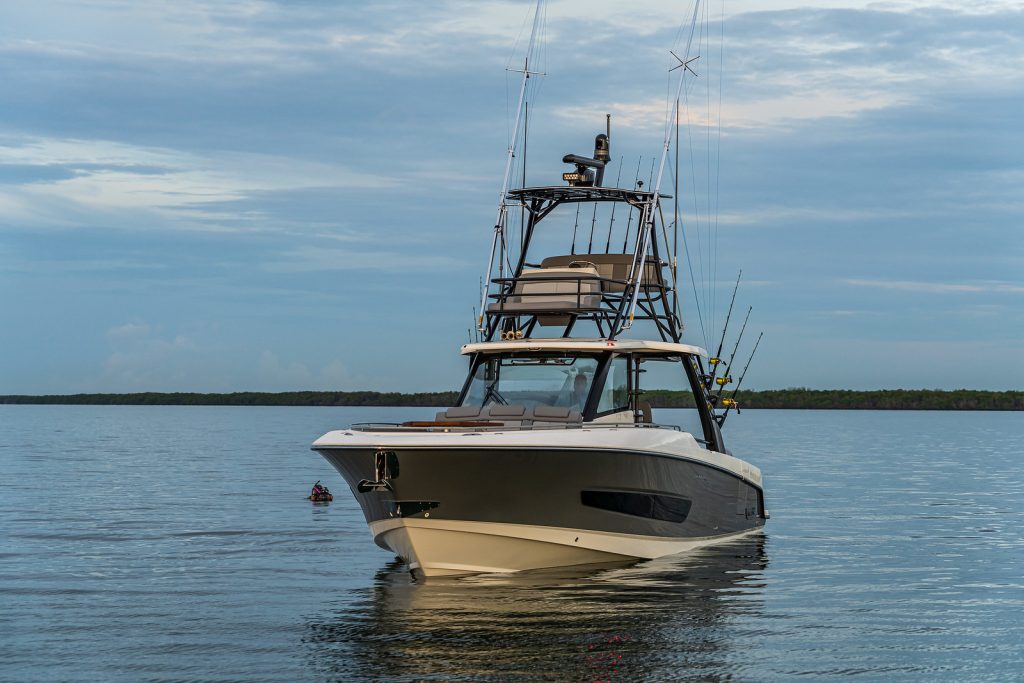

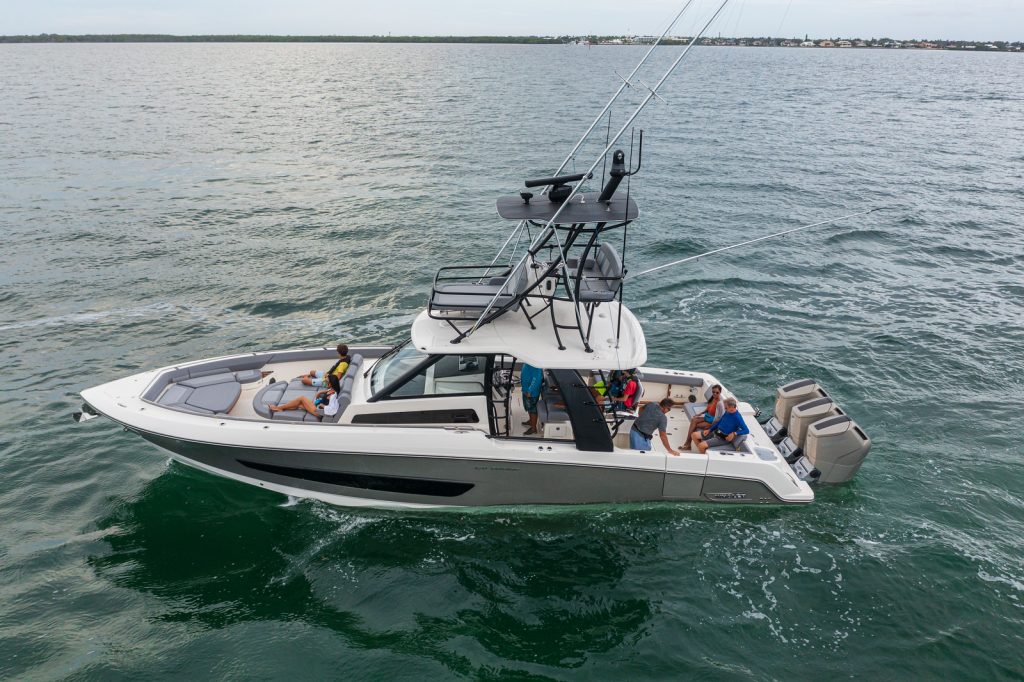

Huge comfort, legendary capability and unmatched state-of-the-art features make the flagship 420 Outrage® a boat like no other. From the expansive bow with innovative seating galore, to the beautifully designed convertible helm and cockpit areas, to the gracious, well-equipped cabin with enclosed head, the 420 is a champion at onboard entertaining and pleasure cruising, whether close to home or way offshore. With so many inviting spaces to settle in for the day, this is the yacht you’ll want to enjoy with family and friends. Step aboard and into the future of boating.
Helm seating accommodates 6 people and converts easily to face forward or aft.
Cockpit sunshade deploys electronically and features black Sunbrella® canvas.
Enclosed head includes electric VacuFlush™ toilet and an enclosed shower with rain shower head.
Spacious cabin with V-berth offers 7 feet of headroom and two available color schemes.
Convertible aft bench tucks away to expand the cockpit with even more fish-fighting room.
Dynamic Running Surface hull technology, featuring automatically adjusting trim tabs, lifts ride quality to new levels.
L.O.A:42′ 6″ (13.0 M)
BEAM:13′ (3.96 M)
DRAFT:31″ (0.79 M)
WEIGHT (DRY, NO ENGINE):22,000 LBS (9, 979
WEIGHT (WITH ENGINES, FUEL AND WATER):28,991 LBS (13,150 KG)
MAXIMUM WEIGHT CAPACITY:7,482 LBS (3,394 KG)
SWAMPED CAPACITY:4,000 LBS (1,814 KG)
MAXIMUM PERSONS CAPACITY:20
MAXIMUM HORSEPOWER:1,675 HP (1,249 KW)
MINIMUM HORSEPOWER:1,200 HP (895 KW)
MAXIMUM ENGINE WEIGHT:3,400 LBS (1,542 KG)
TRANSOM HEIGHT:30″ (0.76 M)
TRANSOM ANGLE:15°
DEADRISE AT TRANSOM:22°
FUEL CAPACITY:600 GALLONS (2,271 L)
WASTE CAPACITY:20 GALLONS (76 L)
WATER CAPACITY:60 GALLONS (227 L)
LIVEWELL VOLUME:40 GALLONS
BRIDGE CLEARANCE WITH HARDTOP:12′ 5″ (3.79 M)
BRIDGE CLEARANCE WITH HARDTOP, RADAR AND SATELLITE TV:14′ 2″ (4.32 M)
Steering wheel – cast stainless steel with knob and tilt helm
Stereo – FUSION® full function remote control (FUSION® integration into Raymarine with Navigation Package)
Switches – remote ignition key switches in cabin with pushbutton start/stop at helm
Theft deterrent system with remote connectivity – includes: anti-theft security key, Boston Whaler Proprietary Vessel Monitoring System, cellular and Satellite 24 hour monitoring system providing world-wide coverage, monitor tanks, batteries, shore power, and high water sensor, remote control of cabin air-conditioning, lighting, circuits and freezer plates, telematics tracking system with GeoFence Immobilization, 1 year subscription included
Windshield defogger with remote shutoff control

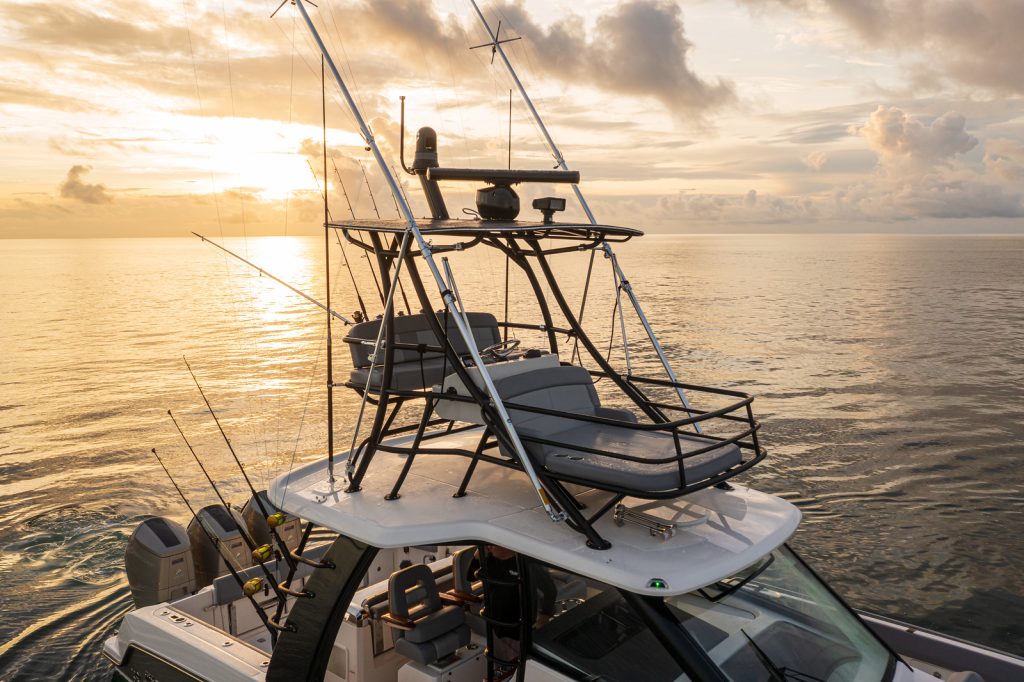

Open Windshield Hardtop System
Custom powder coated frame integrated into the deck providing clean unobstructed walkways
Electronics box with locking latch above helm
Ladder access to hardtop integrated into hardtop frame, port side
Lighting – LED flood lights bow (1), cockpit (2)
Lighting – LED navigation lights
Lighting – LED overhead courtesy/chart light (red and white)
Lighting – LED overhead lighting (blue)
Open tempered side glass with upper removable rigid acrylic canvas curtain
Outrigger ready

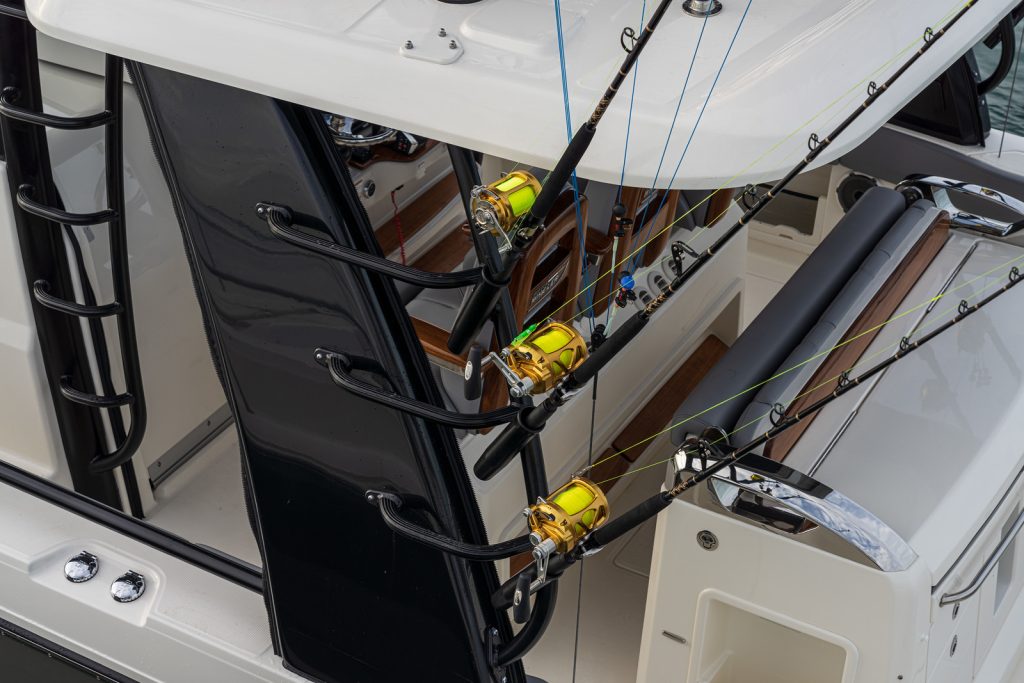

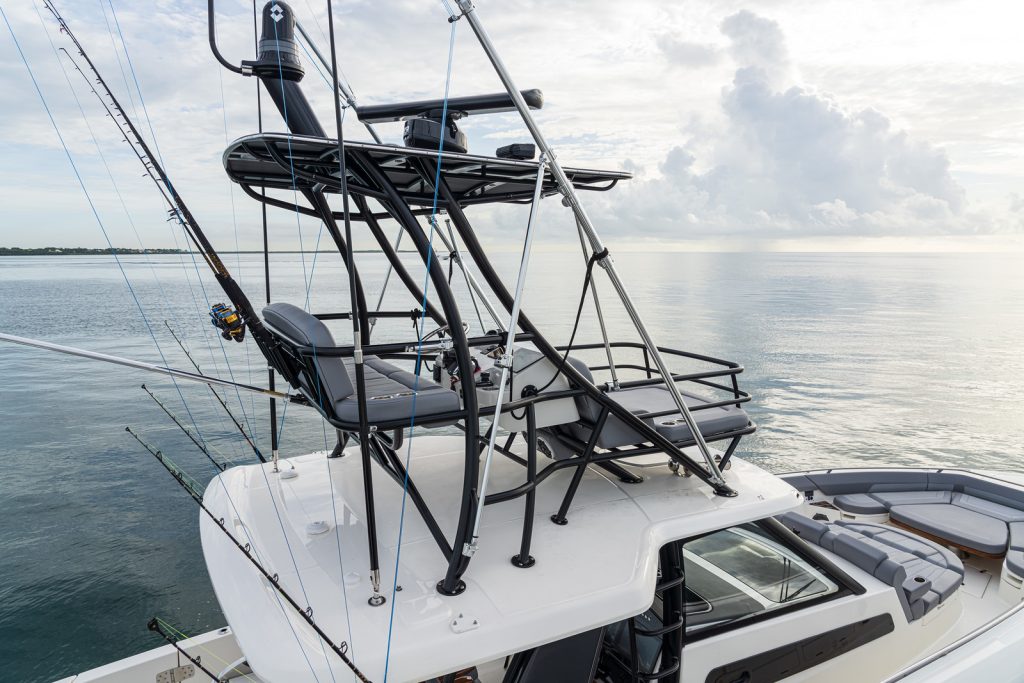

Rod holders integrated onto hardtop supports (6)
Sunshade for cockpit – telescoping polished stainless steel frame retracts and deploys electrically (black Sunbrella® canvas)
Windshield – full tempered glass, full height with electric actuated center vent
Windshield wipers – (1) stainless steel pantograph with wash-system

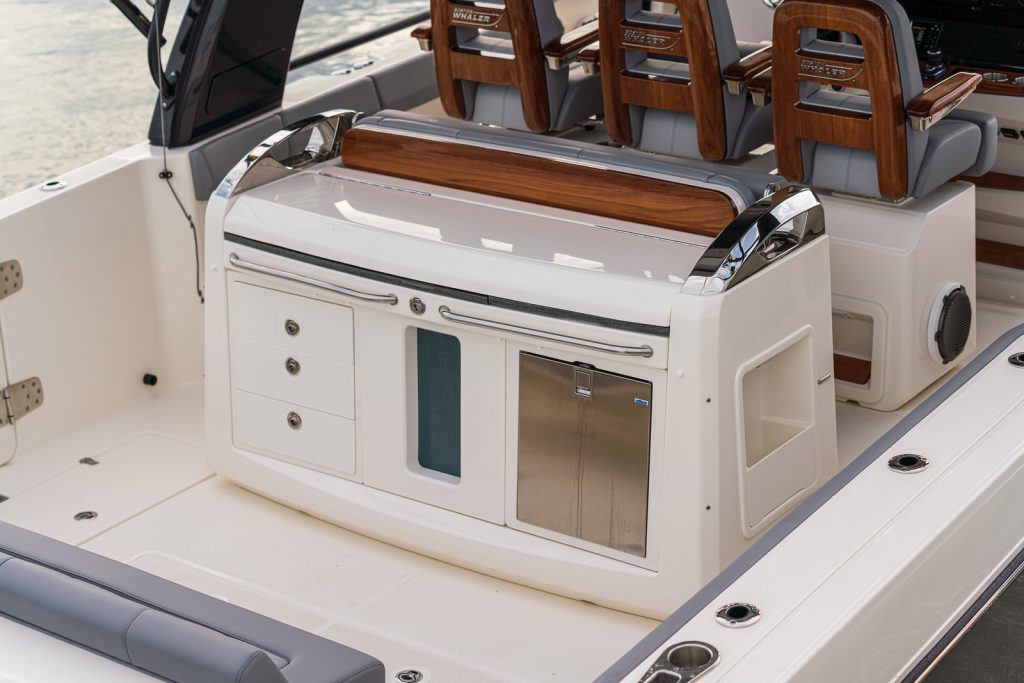

Deluxe Leaning Post/Bait Prep Center
120-V outlets (2)
Bait prep area with cutting board
Drink holders (2)
Electric grill with hinged solid surface lid over grill providing counter surface when not in use
Freshwater sink with hot and cold water
Leaning post cushion on forward side of prep-station that also converts to a 3 person bench seat providing a second row of seating
Lighting – LED task lighting
Livewell – pressurized with viewing window, clear lid, blue interior and red LED light
Pump switch panel with 12-V outlet (insulated 40 gallons)
Storage lid with tool holders, storage nets and leader holders
Tackle storage drawers (3) (port side)
Exterior Seating
Flip-up backrest at forward end of lounge providing wraparound seating
Fold-away stern bench seat

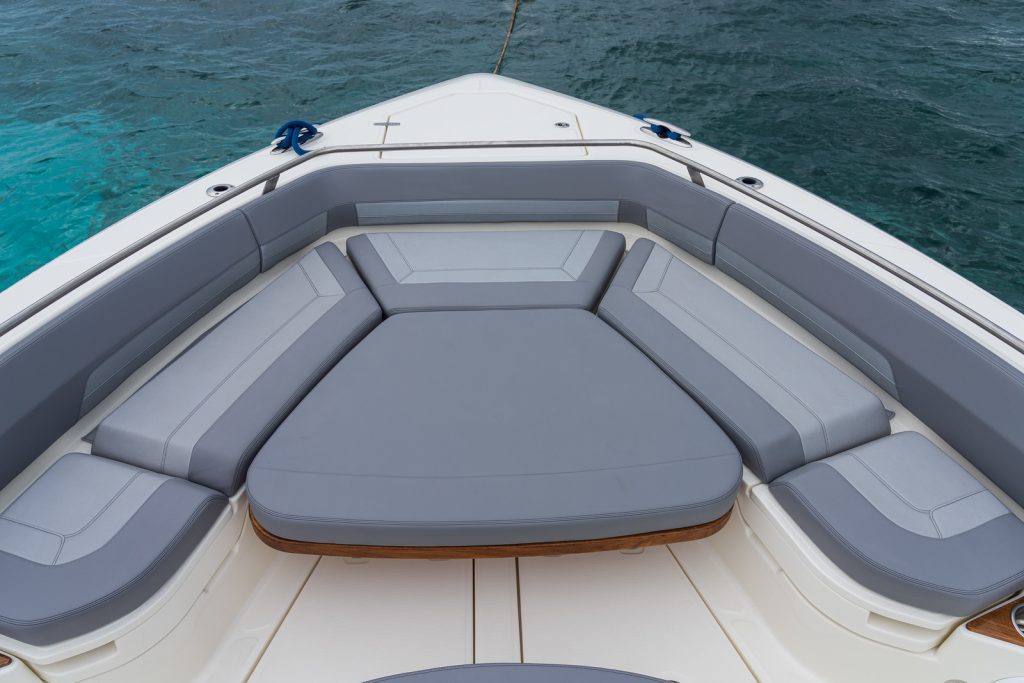

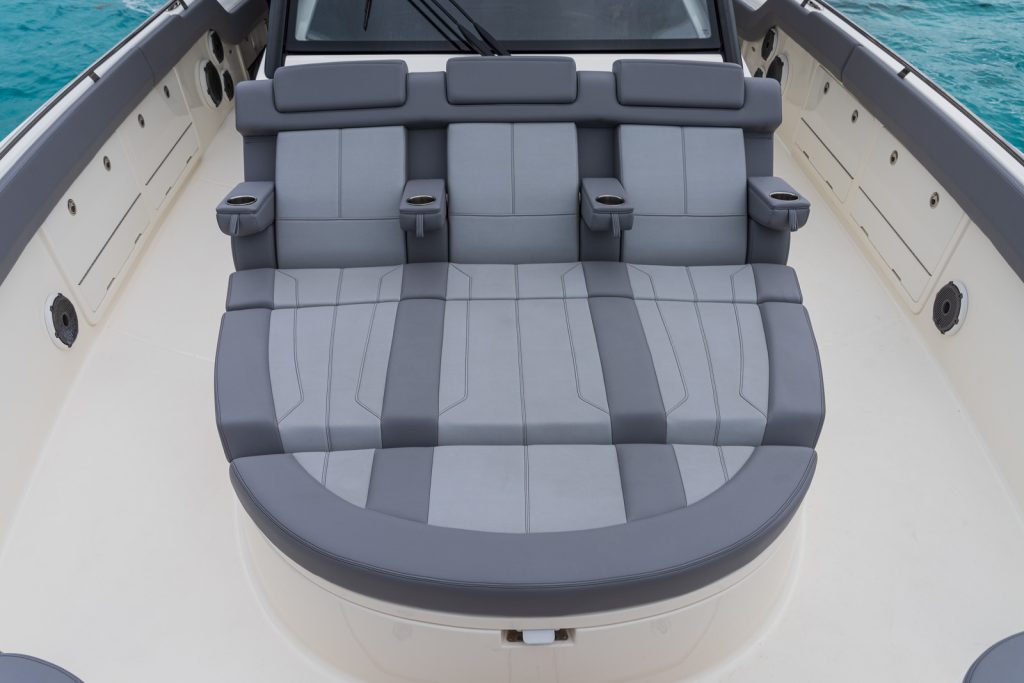

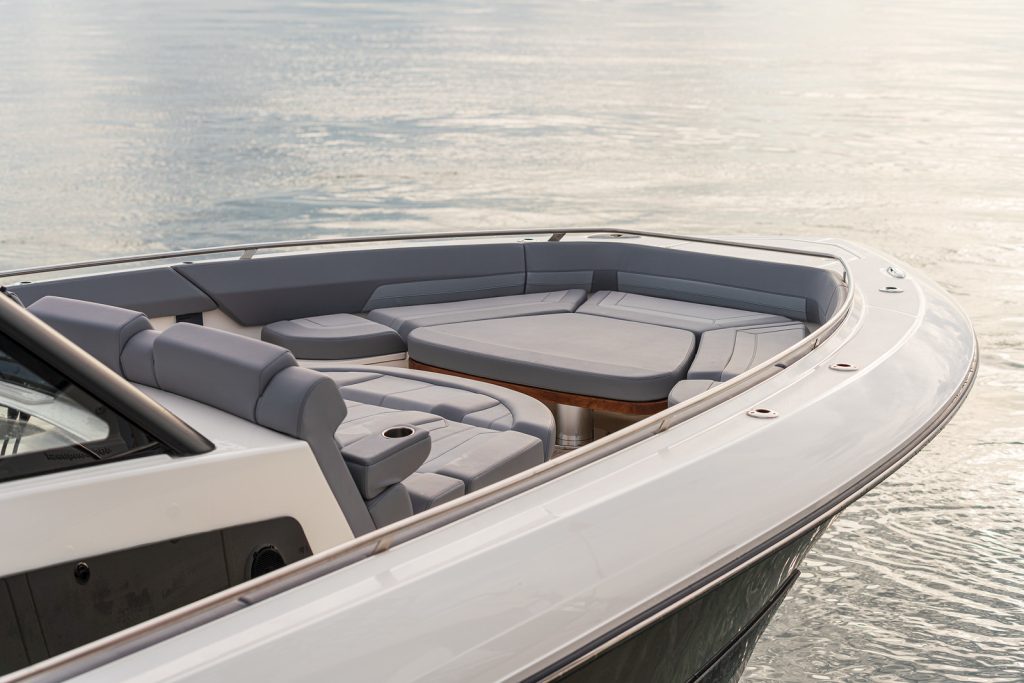

Forward console lounge with fold-down armrests, drink holders (4), backrests and removable cushion
Forward port and starboard seats with folding backrests and drink holders (4) with stereo remote and 12-V receptacle on port side

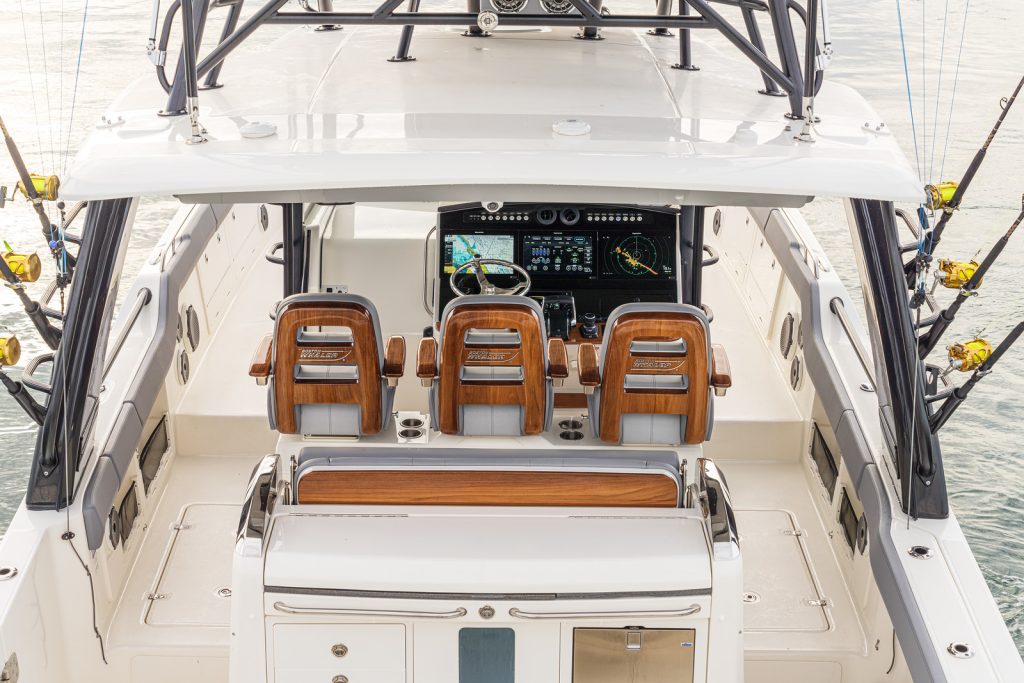

Helm and companion bolster style seats (3) with fold-down armrests (center seat is electrically actuated) (port and starboard seats rotate to face aft)
Leaning post cushion on forward side of the prep station that also converts to 3 person bench seat providing a second row of seating behind the helm
Exterior Storage
Bilge storage aft

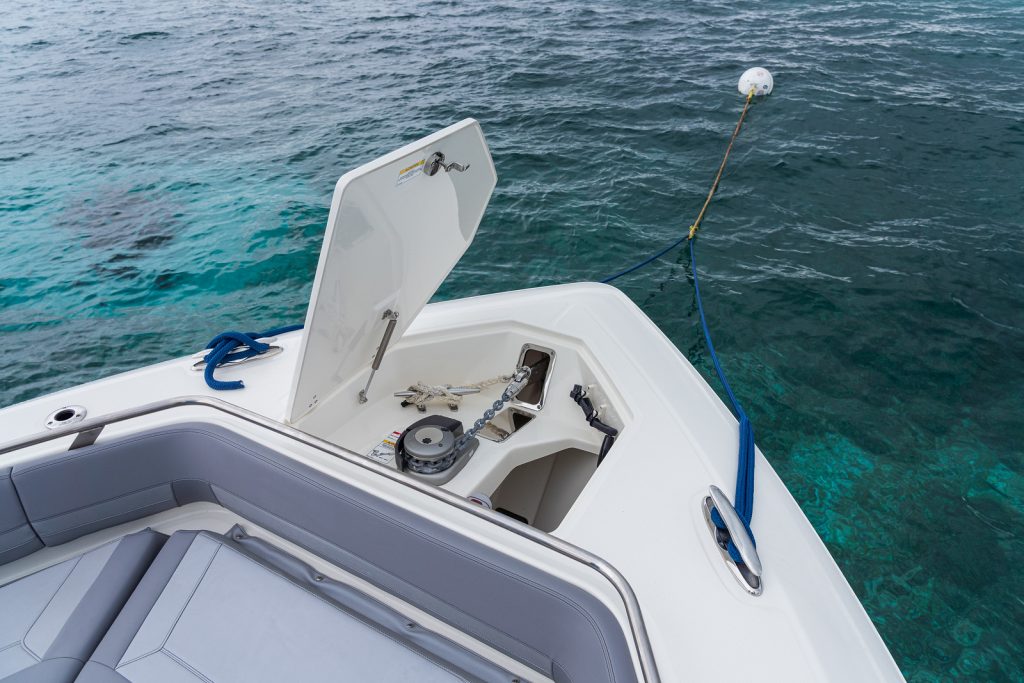

Bow anchor locker with drains
Coaming storage pockets with acrylic doors in port and starboard fore deck area (4)
Coaming storage pockets with net retainers in port and starboard helm deck area (4)
Forward lounge storage – miscellaneous gear, fender storage or optional dive tank storage
Insulated built-in storage/cooler compartment at forward end of the console lounge
Insulated in-floor fishboxes with drains, helm deck (2)
Insulated in-floor storage/fishbox with drains, fore deck (2)
Insulated in-floor storage/fishboxes with pump-out, cockpit (2)
Lifejacket or weather curtain storage in overhead hardtop storage compartment
Lighting – LED lighting in storage compartments
Lockable electronics box in hardtop
Lockable glove box
Prep station side pockets (2)
Prep station storage drawers
Storage under bow seating
Interior Storage
Companionway hanging locker

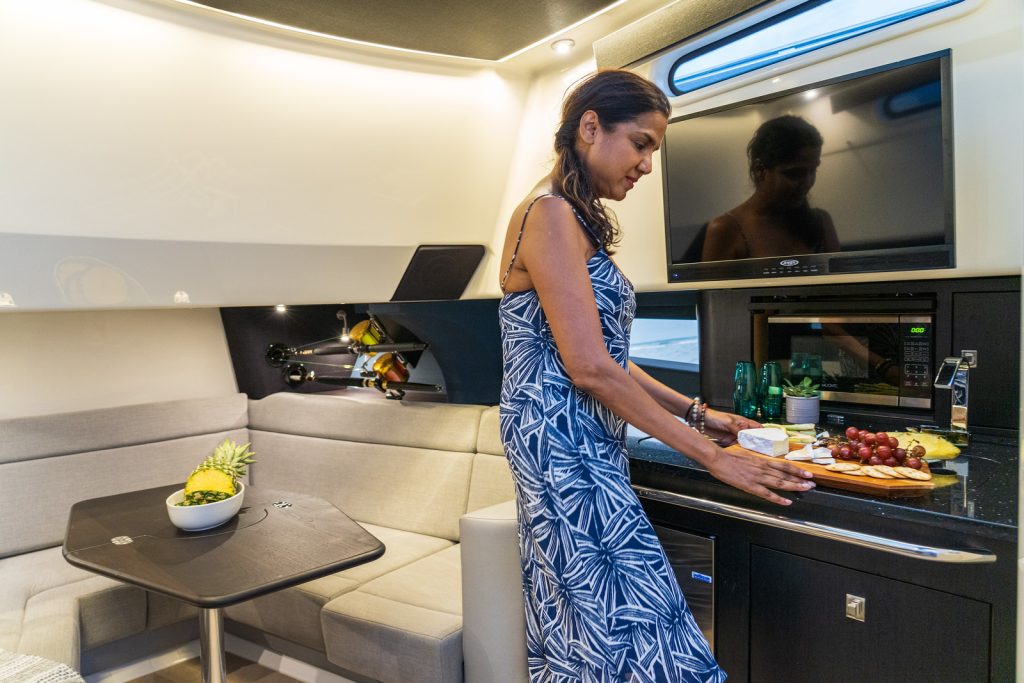

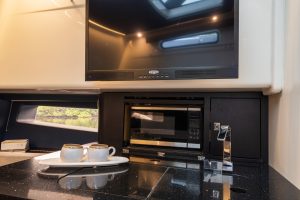

Galley – cabinet aft of microwave
Galley – hinged lid integrated into countertop providing access to storage compartment
Galley – pull-out waste receptacle and dish storage
Head cabinetry
Storage under interior seating
Cabin Interior
120-V receptacle – port side
12-V USB charging ports – port and starboard sides

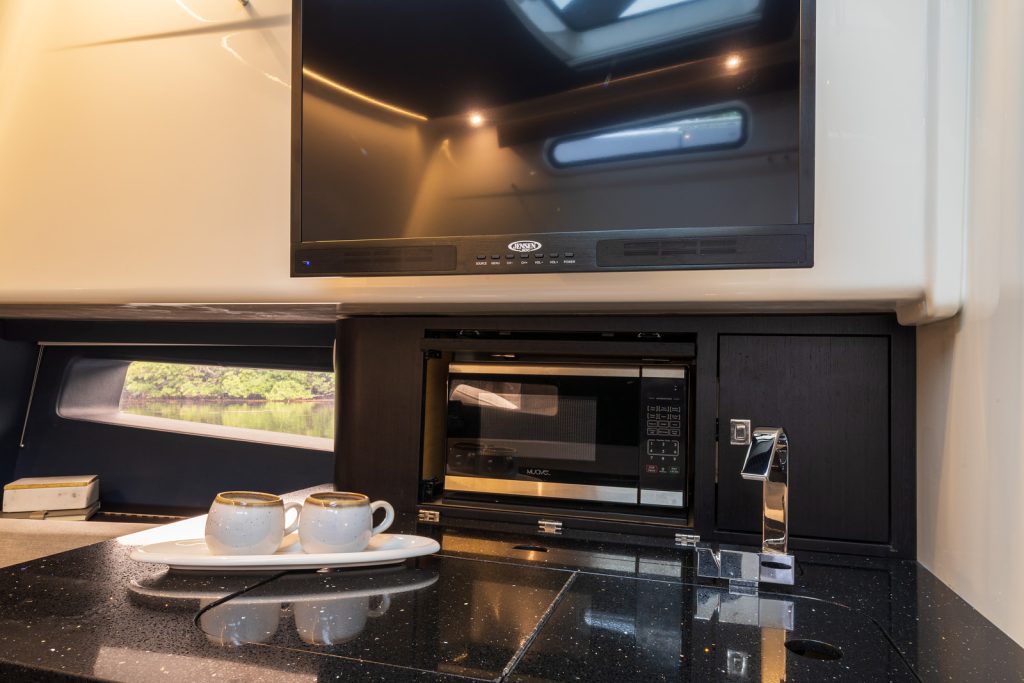

28” flat screen HDTV
Air conditioner (12,000 BTU)
Carbon monoxide detector
Central vacuum system with hose and attachments with dedicated storage
Console side windows with (2) opening port lights with shades
Convertible double berth with filler cushion; comes with fitted sheet, comforter and two regular size pillowcases
Convertible pull-out settee

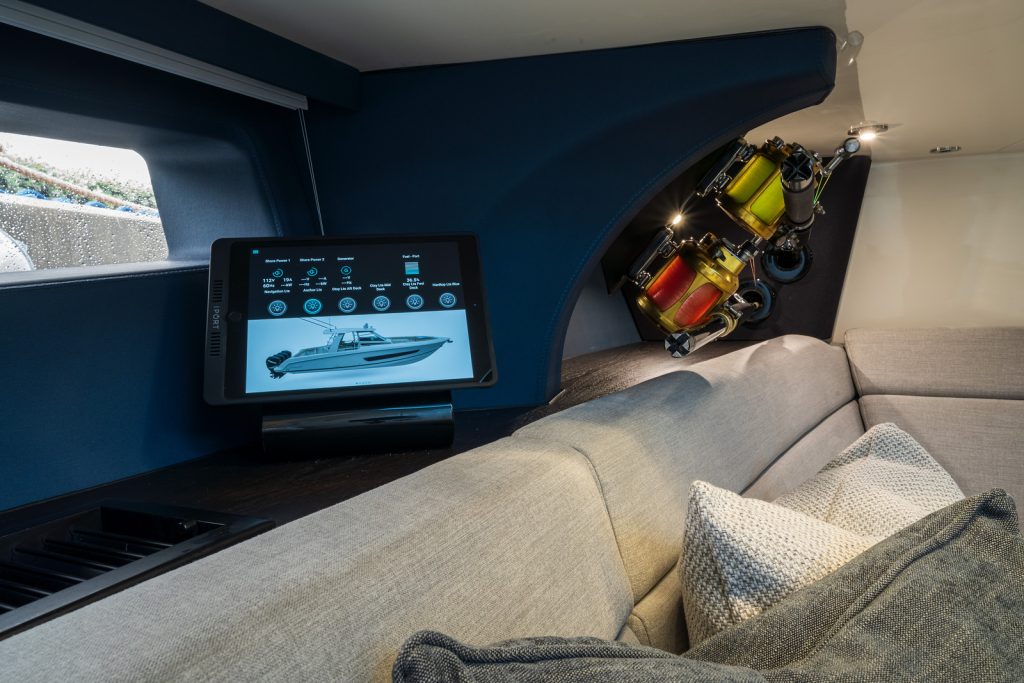

Digital vessel control; iPad with inductive charging case, CZone App (monitor vessel systems and control DC circuits)
Easy to clean interior materials
Elite interior color and material package (standard)
